Inductive Couple for Outdoor

img img img
oupler for lead-in wire (MTR-AMI-H17AMI)
  • oupler for lead-in wire (MTR-AMI-H17AMI)
  • Coupler for neutral line (MTR-AMI-H14NL)
  • Coupler for transmission line (MTR-TR-H30TL)
  • Describution
    INDUCTIVE COUPLE FOR OUTDOOR is a non-contact type data transmission device that can be used outdoors to enable various power monitoring systems such as Advanced Metering Infrastructure using power line communication.
  • Advantage
    · Small and superb communication
    · Applicable to diverse power line specs
    · Easy installation and superb safety
    · Optimized for the KEPCO's Automatic Meter Reading system specs

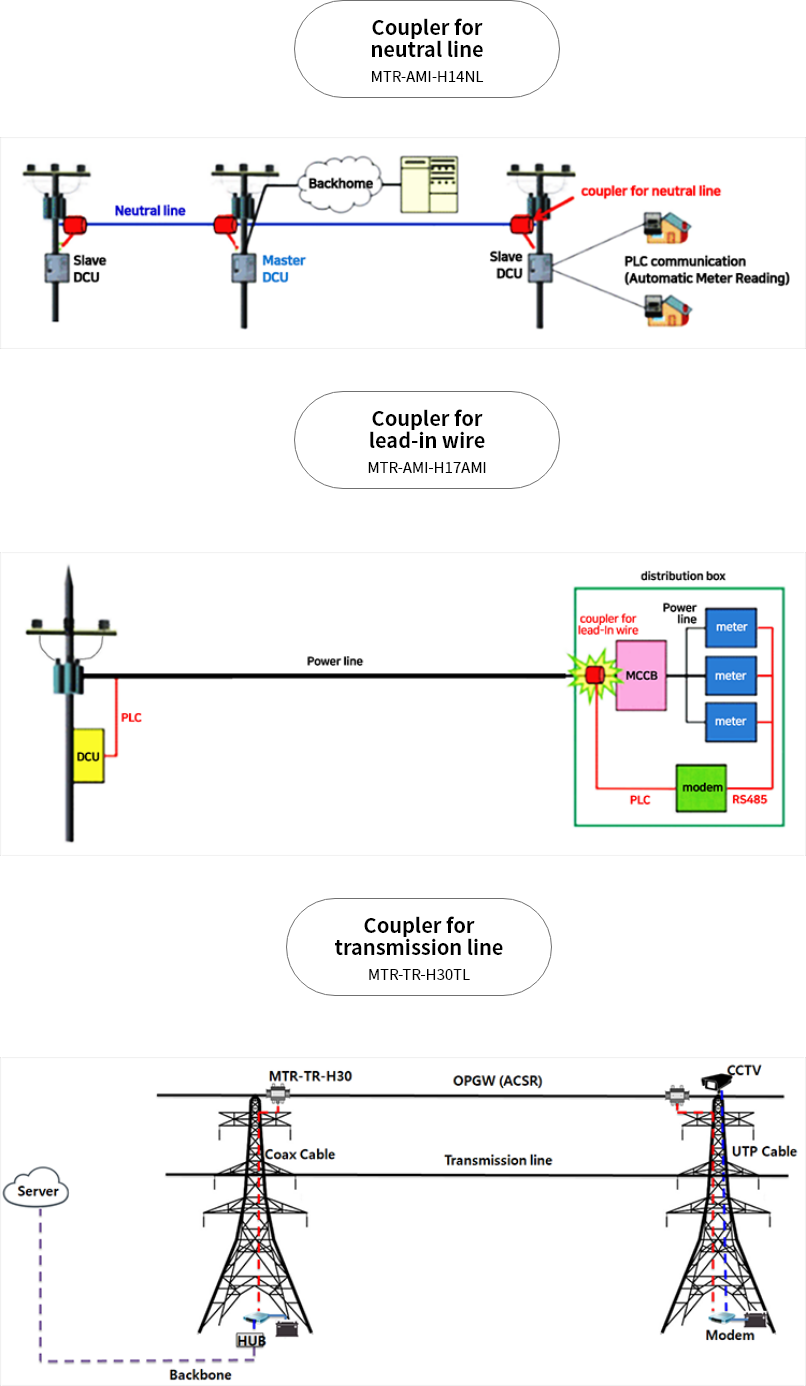

  • Type

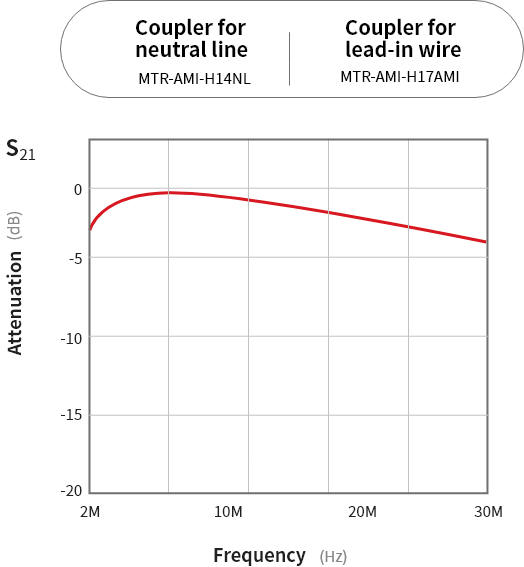

    · Coupler for lead-in wire (MTR-AMI-H14)
    Device that resolves communication defect by reinforcing against signal decrease due to diverse noise and branches at the Advanced Metering Infrastructure

    · Coupler for neutral line (MTR-AMI-H17)
    Device that enables communication between Master DCU and Slave DCU by using neutral line

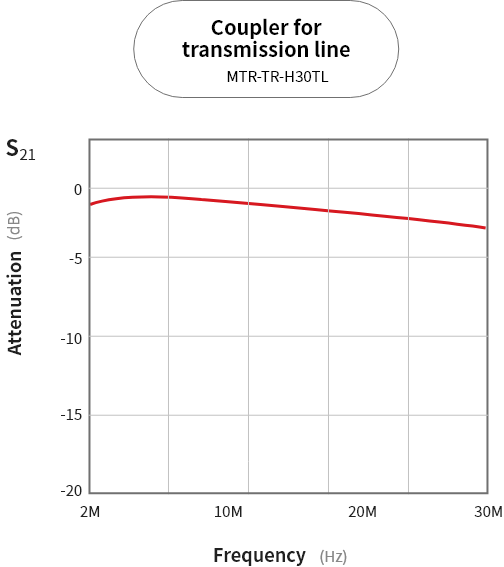

    · Coupler for transmission line (MTR-TR-H30)
    Device that transmits transmission tower monitoring data using OPGW
Specification & Property keyboard_arrow_down
MTR-ICU H Series
Application keyboard_arrow_down
